Code: 100000576
High-quality antennas designed to deliver reliable wireless signal reception and transmission for communication
£1,374.89 ex VAT
QtyAdd to Cart

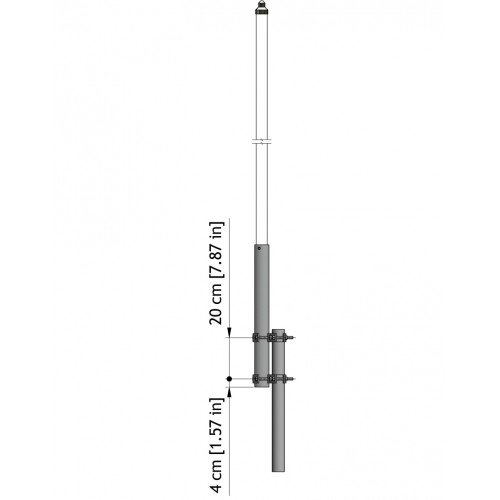

The CXL 2-5SL/… is a 5 dBd, vertically polarized, omnidirectional base station antenna with an 8 MHz bandwidth. Designed with a focus on maximizing bandwidth in terms of both VSWR and gain, the antenna features precisely phased radiating elements to optimize horizontal plane gain while minimizing side lobes. The antenna element is enclosed in a high-quality, cylindrical fiberglass tube with low wind-load, ensuring reliable performance in all climates. To reduce noise from atmospheric discharges, all metal parts are DC-grounded, resulting in a DC-short across the coaxial cable. This lightweight, slim-line, corrosion-resistant, and vibration-proof antenna offers a modern design and includes an "SL" (Slim Line) mast mount, a multipurpose mounting tube made of non-corrosive aluminum. It can be installed on mast tubes with an outer diameter of 33 to 70 mm, and the accompanying clamp set and fittings are constructed from hot-galvanized steel for enhanced durability. Courier quote required
