Code: 110000089
High-quality antennas designed to deliver reliable wireless signal reception and transmission for communication
£257.96 ex VAT
QtyAdd to Cart

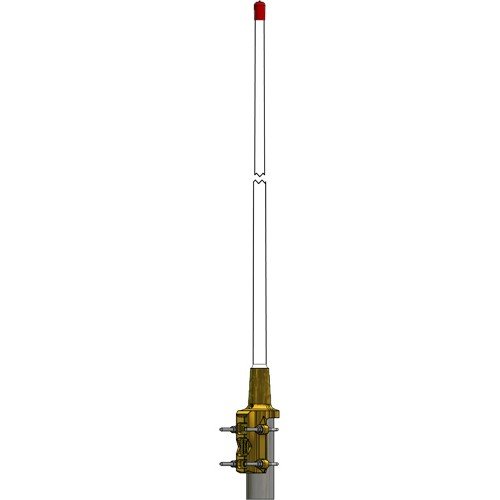

The CXL 70-3LW/… is a 3 dBd, vertically polarized, omnidirectional base station and marine antenna designed for the UHF band, available in four models with up to 10 MHz overlap. It offers a cost-effective, medium-duty alternative to the exceptionally rugged heavy-duty CXL 70-3C/… model. The precisely engineered radiating element is enclosed in a high-quality conical fiberglass tube with low wind-load, ensuring reliable performance even in corrosive environments. The antenna comes with a sturdy “LW” mast mount, a lightweight, multipurpose, epoxy-coated aluminum bracket resistant to corrosion, along with stainless steel U-bolts and fittings. It can be installed on vertical or horizontal mast tubes with an outer diameter of 16 to 54 mm, with the option to route the cable either externally or internally. Designed for broad bandwidth in terms of both VSWR and gain, the antenna is also DC-grounded to minimize noise from atmospheric discharges, resulting in a DC-short across the coaxial cable. With its vibration-proof, lightweight, slim-line, and corrosion-resistant construction, this modern antenna is ideal for base station and marine applications. Courier quote required
