Code: 110000139
High-quality antennas designed to deliver reliable wireless signal reception and transmission for communication
£209.12 ex VAT
QtyAdd to Cart

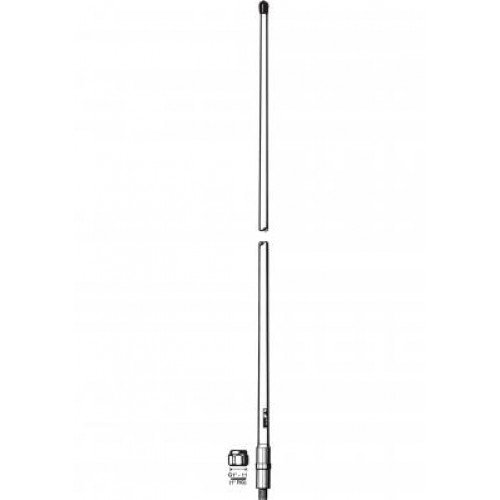

The CXL 70-3/… is a colinear UHF antenna with 3 dBd gain, designed for installation on ships and masts. Its 1” revolving nut mounting system allows for versatile installation on the main mast, auxiliary mast, cross-beam, deck, or rooftop using Procom’s FLG flange mount. Widely used in 450 MHz CELLULAR systems, this antenna extends land-based cellular service for maritime applications, where its gain provides a significant advantage. For optimal performance, it should be mounted as high as possible, away from metal structures like masts and supporting wires, as these can affect the VSWR and radiation pattern. The antenna requires no loading coils, ground-plane, radials, or auxiliary components. As a grounded radiator, it presents a DC-short across the coaxial cable. Its radiating element is enclosed in a durable conical fiberglass tube, ensuring reliable operation in all weather conditions. Courier quote required.
