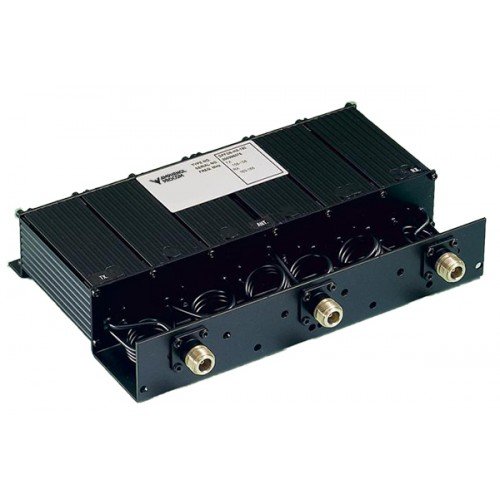

The DPF 2/6-HX-150 is a high-power, six-cavity duplexer designed for mobile or base station use within the 136–175 MHz band. It features six large 40 x 40 mm cavities, each equipped with 3.5 mm silver-plated helical resonators with a 19 mm diameter. The use of large cavities and resonators enhances the Q factor, enabling smaller duplex spacing with lower loss. Its robust design allows for a continuous power rating of up to 100 W. While primarily intended for single-channel operation, the duplexer can be broadband-adjusted for multichannel use with slightly reduced specifications. Constructed from extruded aluminum with a passivated steel chassis, it incorporates semi-rigid coaxial cables and Teflon insulation in all connectors and cables. The black vinyl coating ensures corrosion resistance. When ordering, customers must specify Tx and Rx frequencies, as each filter is individually manufactured.
