Code: 210000201
Explore a wide range of communication products designed for clear, reliable connectivity across industries, including radios, and network solutions.
£389.87 ex VAT
QtyAdd to Cart

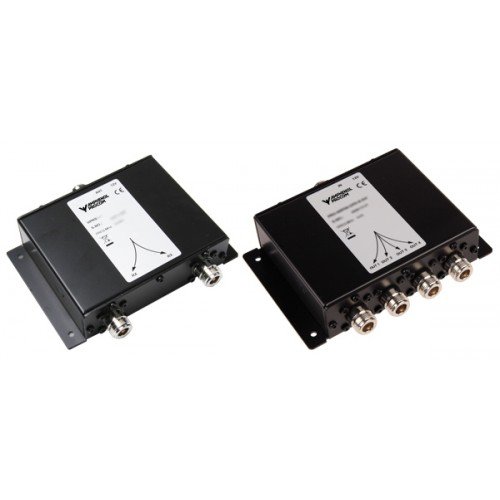

The active wideband receiver multicoupler is designed for the VHF band and the lower part of the UHF band, providing one input and two or four outputs. It allows multiple receivers to share the same antenna and covers a wide frequency range from 30 to 960 MHz. Other available versions include the HPRS-S (10 kHz - 108 MHz) and HPRS-U (690 MHz - 2.7 GHz). The multicoupler features a high-dynamic range amplifier to compensate for losses in the network, offering high OIP2 and OIP3, a low amplifier noise figure, and high isolation between receiver outputs. It operates on a 12 V voltage, with an optional 24 V version available, and can be powered through a solder terminal or a 2.5 mm barrel DC connector. The unit is coated with black vinyl for corrosion resistance and is available with N, TNC, or BNC connectors.
